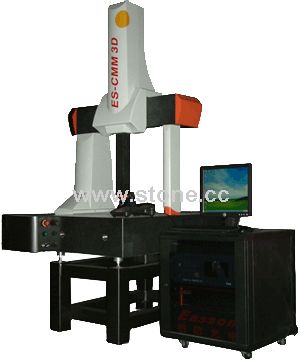

3D Measurement System (ES-CMM)

• Place of Origin:

   China

• Type:

  Quarrying and Earthmoving Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1282287

• Place of Origin:

  China
• ES-CMM automatic (CNC) technical date:
  Model ES-CMM 1086 ES-CMM 1218 ES-CMM 1521
  X axis travel 800mm 1000mm 1200mm
  Y axis travel 1000mm 1200mm 1500mm
  Z axis travel 600mm 800mm 1000mm

  Structure type: Adjustable bridge-type;
  Transmission type: DC servomotor system / preloaded high precision pneumatic bearing;
  Length measuring system: RENISHAW open-type grid scale, resolution 0.5糾 (option: 0.1糾);
  Worktable: High density granite worktable (00 Grade);
  Working ambient: Temperature(20+-2)C, humidity 55%-65%;
  Pneumatic pressure: 0.4MPa-0.5MPa;
  Air flow: 100 L/min-120 L/min;
  Dimension: 2.0m*1.5m*2.7m, 2.3m*1.8m*3.0m, 2.6m*2.1m*3.3m;
  Load bearing: 1000kg;
  Weight: 2000kg 2200kg 2500kg;

  ES-CMM(manual) Technical data:
  Travel range: 500mm*600mm*400mm;
  Resolution: 0.5糾;
  Working ambient: Temperature(20+-2)º C, humidity 55%-65%;
  Pneumatic pressure: 0.4Mpa-0.5NPa;
  Air flow: 100L/min-120L/min;
  Dimension: 1.2m*1.4m*2.2m;
  Load bearing: 500Kg;
  Weight: 850Kg;

  ES-CMM(manual) Probe Measuring System:
  Control system: CMM-Manager(American IQ)
  Working mode: Manual
  Measuring System: RENISHAW(England) Mh20i+TP20
  3D detection accuracy: (E): (3+L/300)糾
